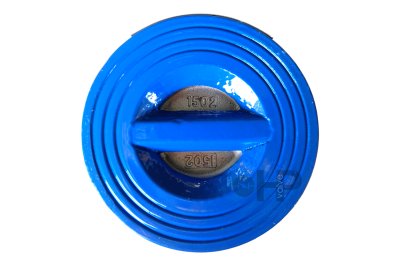

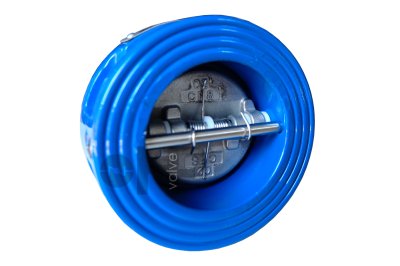

dual plate wafer check valve#UWC101

available size : 1.1/2"-20"

pressure : 1.0 MPa

connection : JIS 10K/150CB/PN10/16

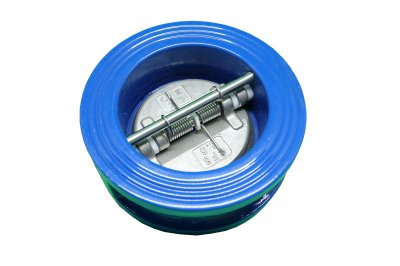

CDPW Series is a wafer type check valve whic have two semicircular spring plates pinned to the body open by fluid pressure,and closed by the spring reaction.

Compact,Lightweight,excellent durability,resistance to corrosion and simple design

Standard:

Design Code: BS5155

End Inspection & Test : DIN 3230 part3

End Standard : JIS10K/PN10/PN16/Ansi 150

Face to Face: DIN 3202 K3

Pressure: 150 PSi
