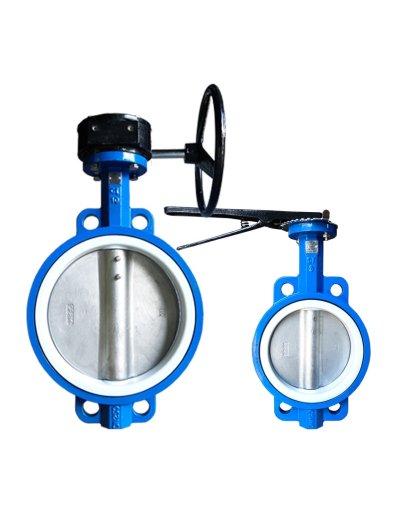

butterfly valve #UBV1002

available size: 1.1/2" - 16"
pressure: 1.0 MPa
operate: handlever (L) / gear&handwheel(G)
connection: wafer 10K/PN10/150LB

The HPV UBV1002 resilient seated butterfly valve combines durability and affordability. With a robust wafer-type design and PTFE seats, it provides leak-free performance and reliable sealing for various applications.

- Available with handles (1.5" to 8"), manual gear operator (1.5"-12")

- Maximum limit of the EPDM seat material: 150 psi (1.0 MPa)pressure and 120˚C temperature
- Designed to comply with BS 5155

- Wafer body features at least four alignment holes with design to be compatible with various flange standards as JIS10K/ANSI150LB/PN1/PN16

Standard :
Design Code
BS5155
End Inspection & Test
DIN3230part3
End Standard
JIS10K/PN10/PN15/ANSI150
Face to Face
DIN3202K1
